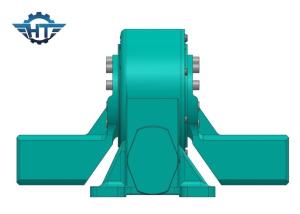

Enclosed 9 Inch Rotary Slewing Drive With Flange Output For Solar Tracking System
Rotary Slewing Drive Description
Slewing drive is a special slewing deceleration product derived from slewing bearing products with high integration, large reduction ratio, simple structure, convenient use and maintenance. The inner and outer rings realize the input and output of driving power respectively, so that the slewing drive can not only realize 360-degree full-circle rotation without a stop, but also install the driving power source on the basis of the slewing bearing frame, so its transmission efficiency is high. It is essentially a reduction gear, so it can also be called a rotary reducer, a turntable reducer or a drive turntable.
Hangtuo manufactured based on the standard which is required in the ISO9001 system. We also passed CE certifications. The slew drive has a long lifespan and it is designed for 30 years field using life time.
VE Model Performance Parameters
| Model |
Ratio |
Rated Output Torque(N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Efficiency |
Precision (°) |
Self-locking |
Weight (kg) |
| 3" |
31:1 |
600 |
1500 |
1800 |
22 |
15 |
40% |
≤0.1 |
Yes |
12 |
| 5" |
37:1 |
800 |
5000 |
9200 |
16 |
27 |
40% |
≤0.1 |
Yes |
18 |
| 7" |
57:1 |
1750 |
7000 |
13200 |
34 |
58 |
40% |
≤0.1 |
Yes |
32 |
| 8" |
51:1 |
2250 |
11200 |
20400 |
50 |
80 |
40% |
≤0.1 |
Yes |
28 |
| 9" |
61:1 |
2250 |
16000 |
30800 |
60 |
130 |
40% |
≤0.1 |
Yes |
52 |
| 12" |
78:1 |
4300 |
25000 |
40560 |
77 |
190 |
40% |
≤0.1 |
Yes |
65 |
| 14" |
85:1 |
5600 |
48000 |
44200 |
110 |
230 |
40% |
≤0.1 |
Yes |
88 |
| 17" |
102:1 |
6750 |
67000 |
53040 |
142 |
390 |
40% |
≤0.1 |
Yes |
135 |
| 21" |
125:1 |
16000 |
89000 |
65000 |
337 |
640 |
40% |
≤0.1 |
Yes |
192 |
| 25" |
150:1 |
21450 |
112000 |
89000 |
476 |
950 |
40% |
≤0.1 |
Yes |
251 |
Advantages
1. High backholding torque
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
5. Flange output
